Thread: Fitting ABS/ reluctor rings the easy and proper way

  1. #1
    Join Date
    Nov 2007
    Location
    BANCHORY
    Posts
    3,240

    Fitting ABS/ reluctor rings the easy and proper way

    Knocking ABS rings on with a hammer and punch does the CV joints no good. Pressing them on is the way to do it:


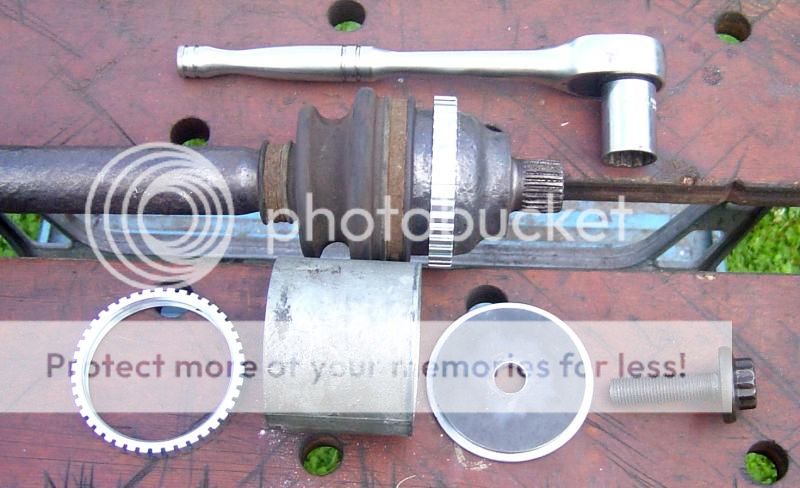

    ABS ring being pressed on using home made tool made from 3" OD pipe and 6 mm plate.

    Pipe is top end cut off from a street lamp post, so it should be straightforward to source materials locally. Exact sizes are as follows: Pipe ID 70.8 mm. Pipe OD 76.9 mm. Pipe length 63 mm (minimum required length is approximately 55 mm). OD of plate is stepped to be guided and centred on pipe ID. Hole diameter for drive shaft bolt is 14 mm.


    Above drive shaft is from 2002. Its original ABS ring had just started to cause the usual trouble.


    There must be a provision for counter holding unless one can fit drive shaft in a vice.

    Drive shaft won't spin around when counter held as shown. Drive shaft is prevented from spinning due to friction generated between drive shaft, ABS ring and tool.

    No need for heat either so no damage to ABS ring protective plating.
    Last edited by tolsen; 25-09-2014 at 11:20 AM.
    Drives a Smart Cdi - 65 to 85 MPG

  2. #2
    Join Date
    Mar 2012
    Location
    Daventry
    Posts
    635
    Nice one!

    I just wish you'd done this 2 weeks ago and I'd have knocked up a copy of your jig on the ol' lathe to do the ones I was was fitting back then.

  3. #3
    Join Date
    Jun 2008
    Location
    Sunny Yorkshire
    Posts
    196
    Quote Originally Posted by tolsen View Post
    Knocking ABS rings on with a hammer and punch does the CV joints no good. Pressing them on is the way to do it:



    ABS ring being pressed on using home made tool made from 3" OD pipe and 6 mm plate.

    Pipe is top end cut off from a street lamp post, so it should be straightforward to source materials locally. Exact sizes are as follows: Pipe ID 70.8 mm. Pipe OD 76.9 mm. Pipe length 63 mm (minimum required length is approximately 55 mm). OD of plate is stepped to be guided and centred on ID pipe. Hole diameter for drive shaft bolt is 14 mm.


    Above drive shaft is from 2002. Its original ABS ring had just started to cause the usual trouble.



    There must be a provision for counter holding unless one can fit drive shaft in a vice. Drive shaft won't spin around when counter holding as shown. Drive shaft is prevented from spinning due to friction generated between drive shaft, ABS ring and tool.

    No need for heat either so no damage to ABS ring protective plating.
    You have found another use for the good old Black & Decker work mate!

  4. #4
    Join Date
    May 2013
    Location
    France
    Posts
    76
    Great piece of advice thanks for sharing, I remember it taking me ages to fit the rings 5yrs ago, this idea would have saved a huge amount of time

  5. #5
    Join Date
    Oct 2006
    Location
    essex
    Posts
    63
    another reason why smartmods abs rings are slightly larger so that they can be bonded into place and dont need clubbing to death
    --
    OTV
    Evil Webmaster

  6. #6
    Join Date
    Nov 2004
    Location
    Essex
    Posts
    1,123
    I just made it from the end of an old drive shaft. If you leave the gearbox end in place, the drive shaft won't spin so you just do up the bolt and it pulls it in place.

  7. #7
    Join Date
    Sep 2011
    Location
    Cornwall
    Posts
    109
    I have to say excellent bit of kit for the job, however prevention is better than cure, I was fortunate that when I purchased my low mileage 450 the reluctor rings were in excellent condition, that was 3-years ago and they are still the same every once in a while I spray them lightly with motorcycle chain lube and use a small brush to get in between the teeth, the grease solidifies after a short while, job done, SIMPLES.!!!

  8. #8
    Join Date
    Nov 2007
    Location
    BANCHORY
    Posts
    3,240
    Tool may be hired for GBP 10 plus postage and GBP 20 reimbursable deposit. Weight packed is 700 grams. Postage cost about GBP 3.20 for 1st class mail each way hence total GBP 16.40. Hire cost is for 7 days. GBP 5 for each additional commenced week is deducted from reimbursable deposit.
    Drives a Smart Cdi - 65 to 85 MPG
